Hitachi Frekvensomformer SJ700

Tilgængelighed: Bestilles fra producent, tages ikke retur.

Varenummer: SJ700-xxx-HFEF

Producentens varenr.: SJ700

Kort beskrivelse: Model udgår

Leveringstid: Oplyses på forespørgsel

Kontakt os pr. e-mail: kontakt@elsag.dk for pris.

Beskrivelse
Forespørgsel

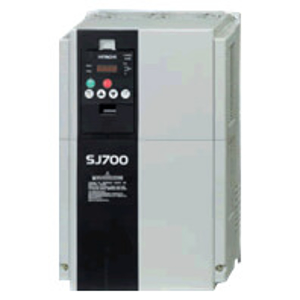

SJ700 Hitachi frekvensomformer

A real all-rounder among frequency inverters. The sensorless vector control makes optimal torque and revolution control possible – even on high loads. With the new Easy Sequence (EzSQ) programming software and precise positioning the SJ700 series of inverters handles complex applications with ease. Various field bus interfaces enable easy integration into a variety of networks.

Position control
"Easy Sequence" programming function
Integrated EMC filter
Integrated brake unit up to 22 kW
200 % starting trorque at 0.3 Hz

Fieldbus interfaces for Profibus, CANopen and DeviceNet
Hardware & software backwards compatibility
Parameter handling assistance
Trip-less operation

SJ700		400V class
Model number		055 HFEF	075 HFEF	110 HFEF	150 HFEF	185 HFEF	220 HFEF	300 HFEF	370 HFEF	450 HFEF	550 HFEF
Applicable motor (kW)		5.5	7.5	11	15	18.5	22	30	37	45	55
Rated output current (A)		14	19	25	32	38	48	58	75	90	110
Rated input voltage		3 ~ 380 … 480 V, +10%, -15%, 50/60 Hz ±5 %
Rated output voltage		3 ~ 380 … 480 V (Corresponding to input voltage)
Line filter FPFB or BTFB		32			64			80	115		125
Output frequency range		0.1…400 Hz
Frequency accuracy (at 25 °C ±10 °C)		Analogue setting: ±0.2 %, digital setting: ±0.01 %
Frequency setting resolution		Analogue setting: Maximum frequency/4000, digital setting: 0.01 Hz
V/f characteristics		V/f (constant torque, reduced torque, free setting curve), sensorless vector control, closed loop vector
Overload capacity		150 % for 60 s, 200 % for 3 s
Acceleration / deceleration time		0.01 - 3600 sec. (Linear/curve, accel./decel. Selection), Two stage accel./decel.
Starting torque		200 % at 0.3 Hz (SLV mode) 180 % at 0.5 Hz (SLV mode)
Revolution accuracy		±0.5 % at sensorless vector control
Braking	Dynamic braking	Built-in BRD circuit						external dynamic braking unit (option)
	Minimum Resistor size in Ohms	70	50	50	24	24	20	-	-	-	-
	DC braking	braking force, time and operating frequency
Inputs	Intelligent input terminals	8 Inputs, NO or NC, PNP or NPN logic
	Analogue inputs	3 Inputs, 0…10 V, 4…20 mA, -10…+10 V
Outputs	Digital outputs	5 outputs, Type „Open Collector“, NO or NC, PNP or NPN logic
	Analogue outputs	3 Outputs, 0…10 V, 4…20 mA; 1 PWM 0…10 V
	Relay output	Single Changeover Contact
PID loop operation		air velocity, temperature etc.
Serial port		RS485, RS422
Remote control up and down		Integrated motorised potentiometer with/without setpoint storage
Bus systems (optional)		Profibus, CANopen, DeviceNet
Standards		CE, UL, cUL, c-Tick
Thermal motor protection		Thermistor input PTC or NTC
Protection		Overcurrent, overvoltage, undervoltage, overload, extreme high temperature, ground fault protection at startup, electronic thermal overload protection etc.
Environ- mental conditions	Temperature / humidity	10…+50 °C temperature, 20…90 % humidity (non condensing)
	Vibration / lnstallation	5.9 m/s2 SJ700-055…220 HFE, 2.94 m/s2 SJ700-300…550 HFE, 10…55 Hz, altitude 1000 m or less indoors, no corrosive gases or dust
CE		IEC/EN 61800-3 (industrial environment; IEC/EN 61800-3 (EN 55011 Group 1, Class B)
Options		remote operator, copy unit, cable for digital operator, Profibus, CANopen, DeviceNet, encoder feedback, reactor for improving power factor, noise filter, ProDrive Software, EzSQ Software
Protection class		IP20 IP00
Weight kg (approx.)		7			14			22	30
Dimensions W/H/D in mm		210 x 260 x 170			250 x 390 x 190			310 x 540 x 195	390 x 550 x 250
Specifications are subject to change without notice Se evt. GD200A frekvensomformere.
