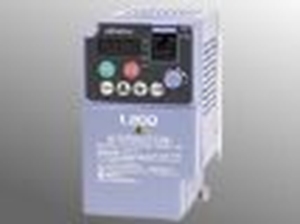

L200 inverter are specially suited for applications with a high priority on cost efficiency. The L200 presents the ideal combination of innovative ISPM-technology, powerful performance and practical design.The broad range of applications includes pumps and ventilation fans (reduced torque characteristics), machine tool manufacturing, packaging, food and beverage production. | - Capacity Range:
0.2 - 7.5 kW - Global Standards to CE, UL, c-UL, C-tick and CSA
- Integrated RS485 Interface
- PID Control
- Automatic Voltage Regulation
- Motor Thermistor Input
- Digital Display with Built-in Potentiometer
- And many more
|
| The L200 inverter is designed for work with pumps and ventilation fans and all standard applications with V/f-control, e.g. food industry. |
| L200 | 200V Series |
|---|
| Model number | 002
NFEF | 004
NFEF | 005
NFEF | 007
NFEF | 011
NFEF | 015
NFEF | 022
NFEF |
|---|
| Max. motor size (kW) | 0.2 | 0.4 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 |
|---|
| Input supply phase | Single phase / Three phases |
|---|
| Rated input voltage | 200V AC -10% ~ 240V AC +10% 50/60 Hz ±5% |
|---|
| Rated output voltage | Three phase 200 ~ 240V AC (Corresponds to input voltage) |
|---|
| Rated output current in A | 1.4 | 2.6 | 3.0 | 4.0 | 5.0 | 7.1 | 10.0 |
|---|
| Dimensions W/H/D in mm | 80/140/100 | 80/140/114 | 110/180/163 | 140/180/178 |
|---|
|
| L200 | 400V Series |
|---|
| Model number | 004
HFEF | 007
HFEF | 015
HFEF | 022
HFEF | 030
HFEF | 040
HFEF | 055
HFE | 075
HFE |
|---|
| Max. motor size (kW) | 0.4 | 0.75 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 |
|---|
| Input supply phase | Three phases |
|---|
| Rated input voltage | 380V AC -10% ~ 480V AC +10% 50/60 Hz ±5% |
|---|
| Rated output voltage | Three phase 360 ~ 480V AC (Corresponds to input voltage) |
|---|
| Rated output current in A | 1.5 | 2.5 | 3.8 | 5.5 | 7.8 | 8.6 | 13.0 | 16.0 |
|---|
| Dimensions W/H/D in mm | 115/155/136 | 110/155/136 | 180/220/162* |
|---|
|
| * | This size without filter |
|
